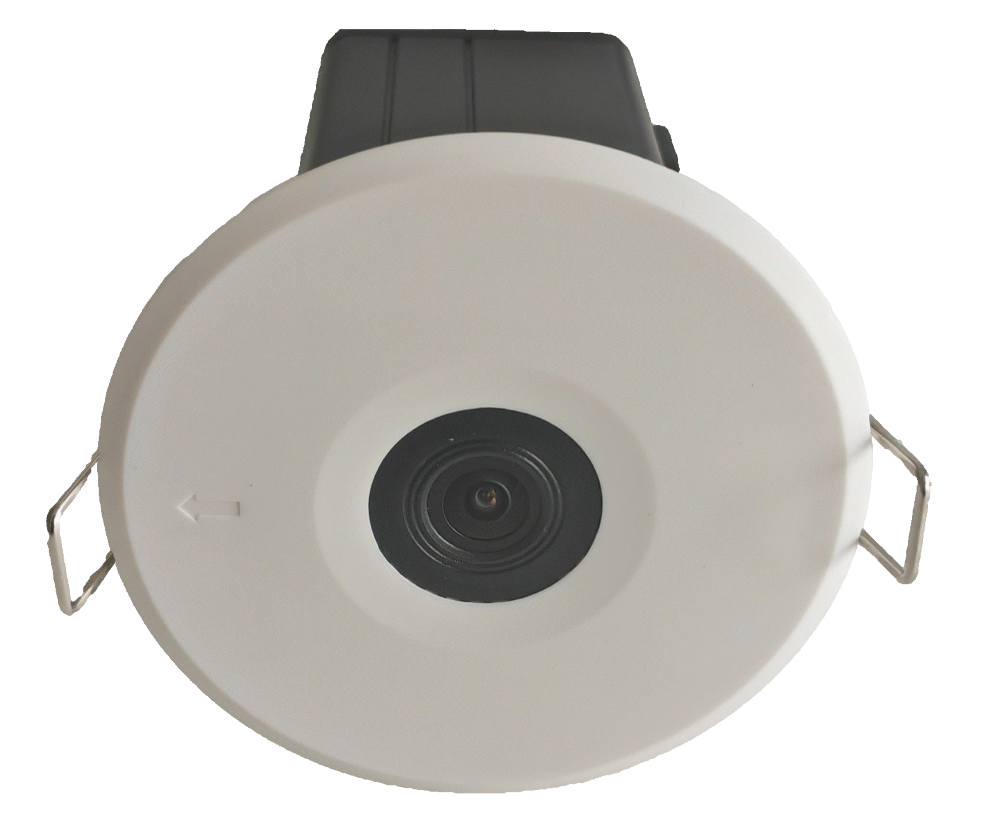

TD-1002 2D Smart Counting Sensor

Sensor mounted overhead with top-view for collecting
anonymized traffic data without invading privacy.

•

Entry level 2D for bi-directional traffic counting
with accuracy, reliability, and flexibility.

•

All-in-one edge computing platform without the need
for extra computing device, saving your total cost.

•

Brief Introduction

TD1002 is an entry level secured traffic counting sensor among its peers for any brick-and-mortar businesses to generate reports and build applications based on accurate footfall traffic analytics.

Designed as an edge computing device, there’s no need to deploy any computing servers on premise and hence save your total cost. The sensor captures top-view images, conducts analysis directly on device and generates anonymized traffic data for encrypted transmission and business reporting afterwards. It is ideal for use in indoor physical spaces for footfall entry and exit statistics in line with regulations and guidelines on data collection and protection.

Similar to other TDI sensors, it features open API for easy integration with other systems, web portal for remote maintenance and data validation, and flexible firmware upgrade. Furthermore, the specially designed mini size of the sensor makes it suitable for use in any retail environments for unobtrusive installation.

Advantages

Cost Effectiveness

With good enough accuracy in typical indoor application scenarios, TD1002 is less expensive than other 2D sensors, therefore saving your total cost of ownership in large scale of deployment.

Mini Size

The TD1002 is specially designed with a smaller size than TD1001, hence is ideal for most retail brands and shopping centres for unobstrusive installations.

Manageability

All TD devices can be easily set up, maintained and upgraded to advanced version firmware, through user-friendly web interface, either locally or remotely over Internet.

Ease of Implementation

All TD sensors embed analytics in device and transmit counting data package through the Ethernet, with no need to put extra computing devices and streaming servers on premise, expediting your system implementation.

Flexibility

All TD devices support perpendicular or tilt installation, recessed or wall/ceiling mounting, standard or custom business reporting.

Key Features

All-in-one device with built-in data capture, storage, analytics and delivery
Supports bi-directional traffic counting with good-enough accuracy
Mini-sized appearance, default with recessed mount for unobtrusive installation, also with the support of ceiling mount
Easy to use web interface for remote management, monitoring, configuration, and software upgrade
Up to 8 discrete zones for people counting and 8 zones for dwell statistics

Supports scheduled storage and output of digital video for validating counting accuracy remotely
Stores counting metrics at a per-minute granularity
Flash memory stores data up at least 90 days
in device (subject to configuration setting)
Data packaged in XML packets and transmitted over HTTP/HTTPS, FTP/FTPS, or daily E-mail
Power over Ethernet
